Start with a fictional rectangular room so the lesson can focus on scale rather than uncertain measurements. Keep the drawing task, conversion key and legend together.
A 6 m by 4 m classroom
Original illustrative room, not a surveyed classroom. Ground length is 6 m and ground width is 4 m.
| Scale | Ground dimensions in cm | Intended paper-plan dimensions |
|---|---|---|
| 1:100 | 600 cm by 400 cm | 6 cm by 4 cm |
| 1:200 | 600 cm by 400 cm | 3 cm by 2 cm |
At 1:100, one drawing unit represents 100 of the same ground units. Convert 6 m to 600 cm before dividing: 600 ÷ 100 = 6 cm on paper. At 1:200, 600 ÷ 200 = 3 cm. The 4 m side similarly becomes 4 cm or 2 cm.
The USGS scale-teaching resource connects scale ratios with ground/map distance and includes drawing a classroom at an assigned scale. The dimensions and lesson sequence here are original.
Give the learner a drawing brief and a separate key
On the learner sheet, provide blank space for both plans, the ground dimensions, a scale label, and an explanation line. Ask them to draw the rectangle and add a simple legend: D = door marker; desk outline = desk symbol. The teacher supplies any desired positions; do not invent exact door or desk measurements from an unmeasured symbol.
The teacher key carries the dimensions above and the question “What stays the same when we change scale?” Ground size stays 6 m by 4 m. The intended paper dimensions change. A 2 cm line at 1:100 represents 200 cm, or 2 m, on the ground.
A proposed 45-minute sequence
- Context, 5 minutes: Distinguish the room from its representation.
- Model, 7 minutes: Convert one ground side to centimeters and apply 1:100.
- Draw, 12 minutes: Learners produce the two labeled plans using the supplied dimensions.
- Compare, 10 minutes: Identify what changes and what remains constant; check the legend.
- Explain, 7 minutes: Use the 2 cm line question and a written scale explanation.
- Review, 4 minutes: Record actual evidence and decide which conversion needs revisiting.
These blocks total 45 minutes. Leave learner drawings and explanations blank before teaching; the plan's correct key is not a report that anyone used the ratio successfully.
Do not measure a browser sketch as a printed map

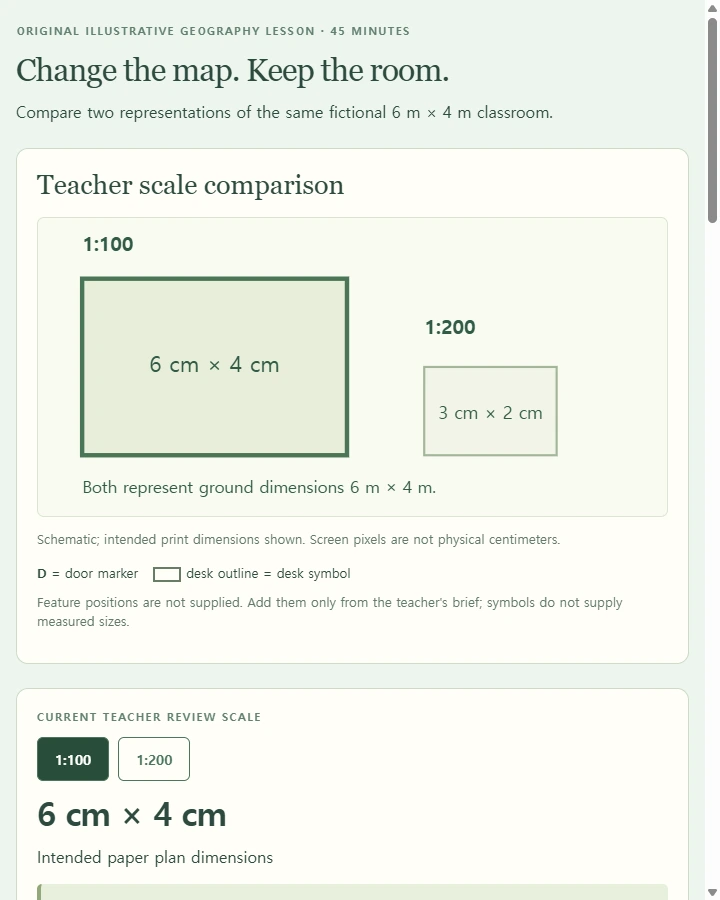

An HTML schematic can display the two scale labels and intended paper dimensions, but resizing a browser window changes its screen appearance. The visual width in pixels is not evidence that the drawing is physically 6 cm wide.
For an actual scaled paper sheet, verify the printed dimensions with a ruler under the intended print settings. A teacher-review screen should say “schematic; intended print dimensions shown” rather than invite a learner to measure the responsive picture and treat that as ground distance.
When switching the review scale, keep the ground dimensions fixed and update the intended drawing labels and conversion. Keep the teacher key separate from the blank learner task.
Copy a scale-focused lesson prompt
Create one complete, self-contained US-English HTML companion for “Same room, two scales · geography lesson”. Return the full HTML document, with inline CSS and any JavaScript needed for the local interactions. Use the original scenario, named records, numbers and expected cases below.
Design the page for this task: use clearly labeled input or source records, a readable result or worked example, and an adjacent explanation of the evidence. Use a restrained visual hierarchy, left-aligned text, readable tables or stacked records, and a responsive layout at 720px and 360px. Provide meaningful labeled controls for 1:100; 1:200; Restore original minutes; Select learner text. Use keyboard-accessible native controls and visible focus. Keep the complete content readable without an external dependency.
The following brief supplies the substantive content and constraints. Native-format requests describe the material to represent or copy manually; this HTML must not pretend to create DOCX, XLSX, PDF, PPTX, H5P or another native file, run Python/Flask/Django/Snowflake/Power BI, connect a live service, send messages, or perform an authorized real-world action. Where the task requires a native source, actual observation or separate approval, retain that requirement and leave unsupplied evidence blank.
Draft an original geography scale lesson in US English.
Class context and duration: [enter or TO CONFIRM]
Fictional or measured ground dimensions and units: [paste]
Scales to compare: [enter]
Teacher-supplied legend/feature positions: [paste]
Required printable worksheet and school planning format: [enter]
Separate ground distance from drawing distance and convert to matching units
before applying ratios. Preserve the same room at both scales. Include model,
blank learner drawing spaces, comparison, explanation and a separate teacher
key; times must sum to the lesson length. Do not invent surveys, feature
dimensions, learner outcomes, navigation claims, or standards approval.
Return the lesson and printable task/key. If requested, offer an HTML review
copy with scale views and labels. A responsive schematic is not measured print
scale; state intended paper dimensions and require actual print verification. No collected answers, saved learner scores or automatic grading.
COMPLETE AUTHORED SCENARIO AND EXPECTED CASES
The following is the supplied reading/teaching/calculation record to represent in the companion. Preserve its particular content, examples, source references and unknowns. Wording about a future native implementation refers to that native task, not permission to omit this HTML companion.
# Geography Lesson Plan Template: Change the Map Scale Without Changing the Room
A classroom plan becomes smaller at 1:200 than at 1:100, but the classroom did not shrink. Put ground dimensions and drawing dimensions in separate columns, then ask learners to explain how both plans represent the same space.
Start with a fictional rectangular room so the lesson can focus on scale rather than uncertain measurements. Keep the drawing task, conversion key and legend together.
## A 6 m by 4 m classroom
**Original illustrative room, not a surveyed classroom.** Ground length is 6 m and ground width is 4 m.
| Scale | Ground dimensions in cm | Intended paper-plan dimensions |
| --- | --- | --- |
| 1:100 | 600 cm by 400 cm | 6 cm by 4 cm |
| 1:200 | 600 cm by 400 cm | 3 cm by 2 cm |
At 1:100, one drawing unit represents 100 of the same ground units. Convert 6 m to 600 cm before dividing: 600 ÷ 100 = 6 cm on paper. At 1:200, 600 ÷ 200 = 3 cm. The 4 m side similarly becomes 4 cm or 2 cm.
The [USGS scale-teaching resource](https://www.usgs.gov/educational-resources/27-ideas-teaching-topographic-maps-0) connects scale ratios with ground/map distance and includes drawing a classroom at an assigned scale. The dimensions and lesson sequence here are original.
## Give the learner a drawing brief and a separate key
On the learner sheet, provide blank space for both plans, the ground dimensions, a scale label, and an explanation line. Ask them to draw the rectangle and add a simple legend: **D = door marker; desk outline = desk symbol**. The teacher supplies any desired positions; do not invent exact door or desk measurements from an unmeasured symbol.
The teacher key carries the dimensions above and the question **“What stays the same when we change scale?”** Ground size stays 6 m by 4 m. The intended paper dimensions change. A 2 cm line at 1:100 represents 200 cm, or 2 m, on the ground.
## A proposed 45-minute sequence
1. **Context, 5 minutes:** Distinguish the room from its representation.
2. **Model, 7 minutes:** Convert one ground side to centimeters and apply 1:100.
3. **Draw, 12 minutes:** Learners produce the two labeled plans using the supplied dimensions.
4. **Compare, 10 minutes:** Identify what changes and what remains constant; check the legend.
5. **Explain, 7 minutes:** Use the 2 cm line question and a written scale explanation.
6. **Review, 4 minutes:** Record actual evidence and decide which conversion needs revisiting.
These blocks total 45 minutes. Leave learner drawings and explanations blank before teaching; the plan's correct key is not a report that anyone used the ratio successfully.
## Do not measure a browser sketch as a printed map
An HTML schematic can display the two scale labels and intended paper dimensions, but resizing a browser window changes its screen appearance. The visual width in pixels is not evidence that the drawing is physically 6 cm wide.
For an actual scaled paper sheet, verify the printed dimensions with a ruler under the intended print settings. A teacher-review screen should say **“schematic; intended print dimensions shown”** rather than invite a learner to measure the responsive picture and treat that as ground distance.
When switching the review scale, keep the ground dimensions fixed and update the intended drawing labels and conversion. Keep the teacher key separate from the blank learner task.
Implement the local companion rather than returning a text-only plan. Preserve every numerical fixture and the distinction between illustrative expectations and actual evidence. Any native-runtime or classroom tests mentioned above remain tests to perform in the proper environment; do not mark them passed. Keep edits and practice responses in this open page only, without claiming persistent storage. Provide invalid/missing-input feedback and reset behavior that agree with this specific brief. Do not claim accessibility certification, learning gains, real approvals or test results that were not observed.
Check the centimeter conversions and legend with a colleague before printing. Keep the printable task as the learner's drawing surface, verify its physical dimensions when scale matters, and ask why the smaller plan still represents the same room.
