Calculate both hand positions from 12, then choose the smaller separation. A useful clock angle calculator shows that trace beside the dial so you can tell whether an error came from the hour-hand position or the choice of angle.
Use a continuous hour hand
This original workbench accepts an hour from 1 through 12 and an integer minute from 0 through 59. It describes an ideal 12-hour clock with continuously advancing hands. Seconds and actual device time are outside the model.
A full circle has 360 degrees. The minute hand completes that turn in 60 minutes, so it advances 6 degrees per minute. The hour hand advances one 30-degree sector in 60 minutes, or 0.5 degree per minute.
The Math Is Fun clock activity illustrates twelve equal sectors and an hour hand between numerals as minutes advance. We independently use the rates derived above and our own examples, rather than copying its dial or exercise set. Clocks and angles activity
Measure angles clockwise from 12. At 1:50, the hour hand has advanced 25 degrees past 1's 30-degree position, reaching 55 degrees. The minute hand is at 50 × 6 = 300 degrees.
Keeping the hour hand at 30 degrees would incorrectly give a smaller separation of 90 degrees. The continuous position gives 115 degrees.
Calculate the two positions, then the separation
Let h be the supplied hour and m the supplied minute. Use h modulo 12 so the displayed hour 12 maps to the zero position.
The authored calculation trace is:
hour angle H = 30 × (h mod 12) + 0.5 × m
minute angle M = 6 × m
raw difference d = |H − M|
smaller angle = min(d, 360 − d)
other separation = 360 − smaller angle
The last row describes the separation around the other side of the circle. It is not another smaller angle.
For 1:50:
| Step | Calculation | Result |
|---|---|---|
| Hour position | 30 × 1 + 0.5 × 50 | 55° |
| Minute position | 6 × 50 | 300° |
| Raw difference | Absolute difference of 55 and 300 | 245° |
| Complement | 360 − 245 | 115° |
| Smaller separation | Smaller of 245 and 115 | 115° |
| Other separation | 360 − 115 | 245° |
Do not display the raw difference as the final answer automatically. It is larger than a half turn here.
Keep the units attached to the numbers. This is an angular separation calculation, not a duration calculation or an angle-unit conversion.
Keep the smaller arc consistent with the text

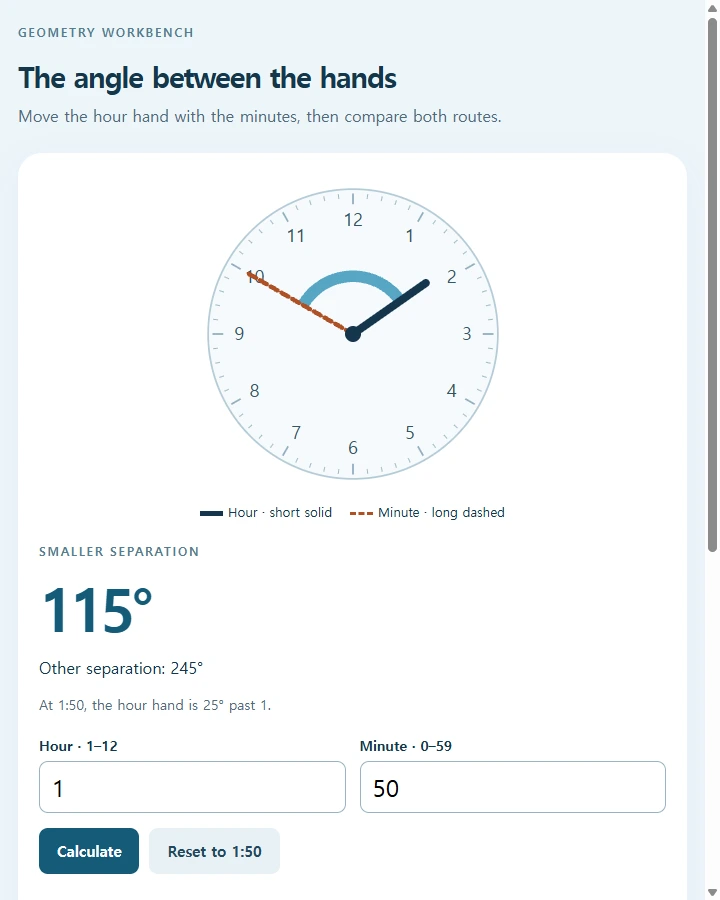

The proposed dial uses two labeled hands and an indication of the smaller angle. At 1:50, the smaller arc runs through the top of the dial between the minute hand and the hour hand. It is not the 245-degree route around the other side.
Use labels, distinct line treatments, and a textual result rather than relying on color. If the larger separation is also reported, label it explicitly as “Other separation: 245°.” Do not use an unlabeled shaded area that leaves the reader guessing which result it represents.
The hour hand must lie between 1 and 2, close to 2, while the minute hand points at 10. Those positions follow from the numeric model. Actual rendered alignment, labels, and keyboard behavior still require implementation checks.
Resizing the dial changes the display scale, not the time or computed angle. Keep the text trace available when the diagram is small.
Check four times with different outcomes
Use these original acceptance cases:
| Time | H | M | Raw d | Smaller | Other separation |
|---|---|---|---|---|---|
| 1:50 | 55° | 300° | 245° | 115° | 245° |
| 9:20 | 280° | 120° | 160° | 160° | 200° |
| 12:00 | 0° | 0° | 0° | 0° | 360° full turn |
| 6:00 | 180° | 0° | 180° | 180° | 180° |
At 9:20, the hour hand is ten degrees beyond 9. The raw difference is already the smaller one, so taking the complement would give the other separation.
At 12:00, both hands coincide. Display a smaller angle of zero and no nonzero wedge. The complementary 360-degree traversal is a full turn, not a second visible gap between different hand directions.
At 6:00, the two routes are equal half turns. Either semicircle can illustrate 180 degrees, but the result should not imply that one route is numerically smaller.
AM and PM do not change this ideal 12-hour geometry. The workbench does not need a timezone, date, or current-time connection.
Validate the fields before updating the result
For this proposed interface, trim outer whitespace and require digit-only integer text. Accept 01 as hour 1 and 00 as minute 0. Reject a blank, a sign, a decimal point, or other text before calculating.
Then check the bounds. Hour 0 or 13 is outside this fixture; minute 60 is also outside it. Do not normalize 60 into the next hour silently. Tell the reader which field needs correction.
Any edit clears the previous computed trace and smaller-angle highlight, leaving “Not calculated.” Calculate validates both fields and displays a result only when the pair is valid. If validation fails, show the field issue and keep the prior result cleared.
This prevents a visible 115-degree answer from appearing to belong to a new invalid entry. A static dial outline can remain, but old hands and a highlighted wedge should not masquerade as current output.
Reset restores 1:50 and its recomputed model trace. It does not read a clock, store a time, or retrieve earlier input.
Review the numeric task before judging the appearance
Ask a reader why the hour angle at 1:50 is 55 degrees, then why the raw 245-degree difference becomes a 115-degree answer. Those two explanations test separate parts of the model.
Keep the labels, hand angles, complement calculation, and result together at the actual article width. At 360 pixels and the actual narrow article container, stack the trace below the dial with explicit units and no page-level horizontal overflow.
The original examples and expected arithmetic are reviewed here. The companion brings the time inputs, dial and numeric trace together.
Copy this complete prompt
Create one complete, self-contained US-English HTML companion for “Clock angle workbench”. Return the full HTML document, with inline CSS and any JavaScript needed for the local interactions. Use the original scenario, named records, numbers and expected cases below.
Design the page for this task: use clearly labeled input or source records, a readable result or worked example, and an adjacent explanation of the evidence. Use a restrained visual hierarchy, left-aligned text, readable tables or stacked records, and a responsive layout at 720px and 360px. Provide meaningful labeled controls for Calculate; Reset to 1:50. Use keyboard-accessible native controls and visible focus. Keep the complete content readable without an external dependency.
The following brief supplies the substantive content and constraints. Native-format requests describe the material to represent or copy manually; this HTML must not pretend to create DOCX, XLSX, PDF, PPTX, H5P or another native file, run Python/Flask/Django/Snowflake/Power BI, connect a live service, send messages, or perform an authorized real-world action. Where the task requires a native source, actual observation or separate approval, retain that requirement and leave unsupplied evidence blank.
Prepare an original 12-hour clock-angle workbench for “Clock Angle Calculator: Move the Hour Hand Before Comparing Angles.”
Use integer hour h from 1 through 12 and integer minute m from 0 through 59. This is an ideal continuously moving hour/minute geometry model, not current device time, seconds, timezone conversion, or an inverse all-times solver.
Derive:
H = 30 * (h mod 12) + 0.5 * m, clockwise from 12. M = 6 * m, clockwise from 12.
d = abs(H - M).
smaller = min(d, 360 - d).
other separation = 360 - smaller. Show both absolute hand angles, raw difference, complement, smaller result, and other separation with degree units. Do not keep the hour hand fixed at its numeral or use raw difference automatically.
Original fixture and reset time 1:50:
H = 55°, M = 300°, d = 245°, complement = 115°, smaller = 115°, other = 245°. The hour hand lies between 1 and 2, near 2; minute hand points at 10. The highlighted smaller arc goes through 12 between them. The fixed-hour alternative would give 90° and must not be used.
Acceptance cases:
9:20: H = 280°, M = 120°, d = 160°, smaller = 160°, other = 200°.
12:00: H = 0°, M = 0°, d = 0°, smaller = 0°; other = 360° is a full traversal, not a second nonzero visible gap. Show coincident hands and no nonzero wedge.
6:00: H = 180°, M = 0°, d = 180°; both separations are 180°. Show equal half-turn result, not a uniquely smaller route. AM/PM leaves these 12-hour positions identical.
Input contract: trim outer whitespace, require ASCII digits only, then check integer bounds. Leading zero text 01/00 is allowed and represents 1/0. Blank, signed, fractional, alphabetic, hour 0/13, and minute 60 are invalid. Do not normalize out-of-range values or turn blank into zero.
Provide labeled hour/minute fields and a Calculate action. Any edit clears the previous trace, hands/highlight, and result to Not calculated. Calculate validates both fields; invalid input shows a field issue and no stale answer. Reset restores 1:50 and recomputes its model trace. No actual clock, storage, export, network, or saved-input feature is included.
Use labeled distinct hour/minute hands and a smaller-angle indicator identifiable without color. Keep the text calculation as an equivalent reading path. Dial resizing changes view scale only, not inputs or results. Handle zero/coincident and equal 180-degree cases explicitly.
At the actual article width show continuous hour movement, 1:50 → 115°, both hand angles, and smaller-versus-other separation together. At 360 pixels and the actual narrow article container stack labeled trace records without page-level horizontal overflow. Controls need keyboard use, visible focus, validation messages, and a clear result status if implemented.
Before completion, verify all four arithmetic cases, continuous hour positioning, selected arc, zero/full-turn distinction, equal semicircles, input rejection, stale-output clearing, reset, keyboard behavior, and actual article/narrow layout. Implementation, rendered reference comparison, runtime, and accessibility testing remain pending until performed.
Actual dial/control behavior needs independent implementation verification. Do not promise a working clock/calculator or tested interaction from NOS HTML support alone.
COMPLETE AUTHORED SCENARIO AND EXPECTED CASES
The following is the supplied reading/teaching/calculation record to represent in the companion. Preserve its particular content, examples, source references and unknowns. Wording about a future native implementation refers to that native task, not permission to omit this HTML companion.
# Clock Angle Calculator: Move the Hour Hand Before Comparing Angles
At 1:50, the hour hand is close to 2. If you leave it pointing exactly at 1, your angle calculation uses the wrong position before you even compare the hands.
Calculate both hand positions from 12, then choose the smaller separation. A useful clock angle calculator shows that trace beside the dial so you can tell whether an error came from the hour-hand position or the choice of angle.
## Use a continuous hour hand
This original workbench accepts an hour from 1 through 12 and an integer minute from 0 through 59. It describes an ideal 12-hour clock with continuously advancing hands. Seconds and actual device time are outside the model.
A full circle has 360 degrees. The minute hand completes that turn in 60 minutes, so it advances 6 degrees per minute. The hour hand advances one 30-degree sector in 60 minutes, or 0.5 degree per minute.
The Math Is Fun clock activity illustrates twelve equal sectors and an hour hand between numerals as minutes advance. We independently use the rates derived above and our own examples, rather than copying its dial or exercise set. [Clocks and angles activity](https://www.mathsisfun.com/activity/clocks-angles.html)
Measure angles clockwise from 12. At 1:50, the hour hand has advanced 25 degrees past 1's 30-degree position, reaching 55 degrees. The minute hand is at 50 × 6 = 300 degrees.
Keeping the hour hand at 30 degrees would incorrectly give a smaller separation of 90 degrees. The continuous position gives 115 degrees.
## Calculate the two positions, then the separation
Let h be the supplied hour and m the supplied minute. Use h modulo 12 so the displayed hour 12 maps to the zero position.
The authored calculation trace is:
hour angle H = 30 × (h mod 12) + 0.5 × m
minute angle M = 6 × m
raw difference d = |H − M|
smaller angle = min(d, 360 − d)
other separation = 360 − smaller angle
The last row describes the separation around the other side of the circle. It is not another smaller angle.
For 1:50:
| Step | Calculation | Result |
| --- | --- | --- |
| Hour position | 30 × 1 + 0.5 × 50 | 55° |
| Minute position | 6 × 50 | 300° |
| Raw difference | Absolute difference of 55 and 300 | 245° |
| Complement | 360 − 245 | 115° |
| Smaller separation | Smaller of 245 and 115 | 115° |
| Other separation | 360 − 115 | 245° |
Do not display the raw difference as the final answer automatically. It is larger than a half turn here.
Keep the units attached to the numbers. This is an angular separation calculation, not a duration calculation or an angle-unit conversion.
## Keep the smaller arc consistent with the text
The proposed dial uses two labeled hands and an indication of the smaller angle. At 1:50, the smaller arc runs through the top of the dial between the minute hand and the hour hand. It is not the 245-degree route around the other side.
Use labels, distinct line treatments, and a textual result rather than relying on color. If the larger separation is also reported, label it explicitly as “Other separation: 245°.” Do not use an unlabeled shaded area that leaves the reader guessing which result it represents.
The hour hand must lie between 1 and 2, close to 2, while the minute hand points at 10. Those positions follow from the numeric model. Actual rendered alignment, labels, and keyboard behavior still require implementation checks.
Resizing the dial changes the display scale, not the time or computed angle. Keep the text trace available when the diagram is small.
## Check four times with different outcomes
Use these original acceptance cases:
| Time | H | M | Raw d | Smaller | Other separation |
| --- | --- | --- | --- | --- | --- |
| 1:50 | 55° | 300° | 245° | 115° | 245° |
| 9:20 | 280° | 120° | 160° | 160° | 200° |
| 12:00 | 0° | 0° | 0° | 0° | 360° full turn |
| 6:00 | 180° | 0° | 180° | 180° | 180° |
At 9:20, the hour hand is ten degrees beyond 9. The raw difference is already the smaller one, so taking the complement would give the other separation.
At 12:00, both hands coincide. Display a smaller angle of zero and no nonzero wedge. The complementary 360-degree traversal is a full turn, not a second visible gap between different hand directions.
At 6:00, the two routes are equal half turns. Either semicircle can illustrate 180 degrees, but the result should not imply that one route is numerically smaller.
AM and PM do not change this ideal 12-hour geometry. The workbench does not need a timezone, date, or current-time connection.
## Validate the fields before updating the result
For this proposed interface, trim outer whitespace and require digit-only integer text. Accept 01 as hour 1 and 00 as minute 0. Reject a blank, a sign, a decimal point, or other text before calculating.
Then check the bounds. Hour 0 or 13 is outside this fixture; minute 60 is also outside it. Do not normalize 60 into the next hour silently. Tell the reader which field needs correction.
Any edit clears the previous computed trace and smaller-angle highlight, leaving “Not calculated.” Calculate validates both fields and displays a result only when the pair is valid. If validation fails, show the field issue and keep the prior result cleared.
This prevents a visible 115-degree answer from appearing to belong to a new invalid entry. A static dial outline can remain, but old hands and a highlighted wedge should not masquerade as current output.
Reset restores 1:50 and its recomputed model trace. It does not read a clock, store a time, or retrieve earlier input.
## Review the numeric task before judging the appearance
Ask a reader why the hour angle at 1:50 is 55 degrees, then why the raw 245-degree difference becomes a 115-degree answer. Those two explanations test separate parts of the model.
Keep the labels, hand angles, complement calculation, and result together at the actual article width. At 360 pixels and the actual narrow article container, stack the trace below the dial with explicit units and no page-level horizontal overflow.
The original examples and expected arithmetic are reviewed here. The companion brings the time inputs, dial and numeric trace together.
Implement the local companion rather than returning a text-only plan. Preserve every numerical fixture and the distinction between illustrative expectations and actual evidence. Any native-runtime or classroom tests mentioned above remain tests to perform in the proper environment; do not mark them passed. Keep edits and practice responses in this open page only, without claiming persistent storage. Provide invalid/missing-input feedback and reset behavior that agree with this specific brief. Do not claim accessibility certification, learning gains, real approvals or test results that were not observed.
Keep the prepared geometry explanation with the source
The companion provides an HTML review copy. Include the time inputs, continuous-hour assumption, numeric trace, and pending or observed implementation checks so the diagram's meaning stays clear.
