A tip speed calculator needs two visible normalization steps: turn the supplied size into radius in meters, then turn RPM into radians per second. Only then multiply for the rim point's speed.
This original two-mode geometry helper calculates a nonnegative speed magnitude for a point at a fixed radius. It also recovers RPM from that speed and radius. It specifies a native HTML file, worksheet and tests; it does not establish a machine rating, physical simulation or working hosted calculator.
Show the radius and diameter in the input
OpenStax relates tangential speed to angular velocity through v=rω for fixed radius, and explains two pi radians per revolution. The RPM derivation below adds the minute-to-second conversion explicitly. OpenStax: Rotational Variables
Offer Size kind as Radius or Diameter, with m or mm as the accepted unit. A plain Size field without its kind leaves the formula underdetermined.
Normalize millimeters by dividing by 1,000. If the kind is Diameter, halve the normalized meter value to obtain r. If it is Radius, retain that value. Show the normalized r in the output so the reader can inspect it.
Use an original static circle diagram with a center-to-rim radius segment and an edge-to-edge diameter segment through the center. Label both in text and add D=2r. It is an explanation of the geometry, not copied source artwork or an animated blade.
Write the unit cancellation next to the result
For the forward mode:
ω = RPM × 2π ÷ 60, in rad/s.
v = ω × r, in m/s.
One revolution contributes 2π radians; one minute contributes sixty seconds. A rotation rate of 60 RPM is one revolution per second, so ω=2π rad/s.
| Original independent forward input | Normalized radius | Rim speed |
|---|---|---|
| Radius 0.5 m, 60 RPM | 0.5 m | π ≈ 3.141593 m/s |

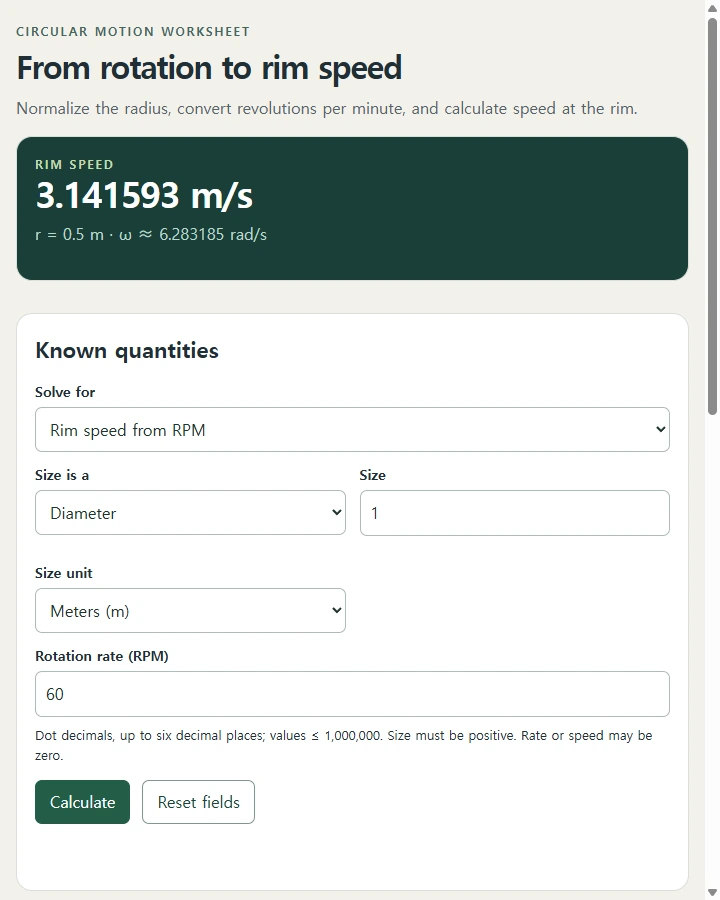

| Diameter 1 m, 60 RPM | 0.5 m | π ≈ 3.141593 m/s |
| Radius 500 mm, 60 RPM | 0.5 m | π ≈ 3.141593 m/s |
| Radius 0.5 m, 120 RPM | 0.5 m | 2π ≈ 6.283185 m/s |
| Radius 0.25 m, 60 RPM | 0.25 m | π/2 ≈ 1.570796 m/s |
The first three records describe the same radius and rotation rate. Doubling RPM in the fourth doubles speed at that radius. Halving radius in the fifth halves speed at the same RPM. These are formula fixtures, not measured hardware results.
Do not report diameter × ω as tip speed. If a diameter is the supplied dimension, the equivalent direct formula contains the required half: v=π × D × RPM ÷ 60.
Recover RPM without recycling rounded text
For inverse mode, accept v in m/s and the same explicit size kind/unit. Normalize r first, then calculate RPM = 60v ÷ (2πr). The radius must be positive, so this mode cannot divide by zero.
For the internal mathematical fixture v=π m/s and r=0.5 m, the result is 60 RPM. Pi is a mathematical constant supplied to the test, not a literal pi string accepted by the ordinary input parser.
If someone instead types the displayed 3.141593 m/s with radius 0.5 m, the result is approximately 60.000007 RPM at six decimals. That small difference follows from the rounded source value. Do not claim exact inversion from rounded display text.
Keep internal values unrounded while computing. Format visible values to at most six decimals with approximation context, and retain the full internal record for comparisons. A small positive value must not be described as exact zero merely because of formatting.
This design has a mode selector, not an automatic Swap that feeds rounded text into the other equation. Switching modes clears the prior fields and result so the input label cannot change from RPM to m/s while retaining an unrelated number.
Keep zero speed separate from zero size
For typed fields, accept dot-decimal digits with up to six fractional digits and magnitude no greater than 1,000,000. Size must be strictly positive; RPM and input speed may be zero. This bounded range and grammar are interface choices, not engineering limits.
With positive radius, zero RPM gives zero ω and zero rim speed. In inverse mode, zero speed gives zero RPM. Reject zero radius or diameter in both modes, as well as blank, negative, nonfinite, comma-formatted, exponent-formatted or unsupported-unit input.
Preserve raw text and selected mode/size kind/unit in the calculation record. Include normalized radius, input rate or speed, formula, ω where derived, internal output and displayed output. If the original record gives only diameter, the result should make its halving visible rather than hide it in an intermediate calculation.
Any field edit invalidates the old output. Reset empties all fields and mode/size/unit selections, clears feedback and the result, and returns to a choose-mode state. A stale answer must not survive an invalid replacement input.
Stop at the geometric speed result
The helper does not determine a blade's allowable RPM, load, material strength or operating safety. It has no hardware-control connection. It also does not calculate wind tip-speed ratio, tip Mach, cutting ratings, engine displacement or horsepower.
Those tasks need inputs and models beyond a radius and a rotation rate. A diagram and correct unit cancellation do not supply them. Keep the useful result narrow: the speed magnitude implied by the supplied fixed-axis geometry and rate.
Copy this prompt to specify the native helper
Create an original self-contained HTML/CSS/JavaScript fixed-radius rim-speed helper, complete native source, worksheet and manual test matrix. Reference https://openstax.org/books/university-physics-volume-1/pages/10-1-rotational-variables for 2π radians/revolution and v=rω at constant radius. No copied figures/examples, hardware control, animation, network/storage, machine ratings, simulation or safety certification.
Two explicit modes: Forward takes RPM plus size; Inverse takes speed in m/s plus size. Size kind is Radius or Diameter; unit is m or mm. Convert mm/1000 to meters, then divide by 2 for diameter. Show normalized radius r and an original static circle diagram with labeled radius/diameter and D=2r; text explanation remains readable.
Forward ω=2π×RPM/60 rad/s and v=ωr m/s. Inverse RPM=60v/(2πr). Use nonnegative magnitudes, not rotation-direction vectors. Fixtures: r=0.5 m/RPM=60 → ω=2π and v=π≈3.141593; D=1 m or r=500 mm gives the same; RPM=120 at r=0.5 → 2π≈6.283185; r=0.25/RPM=60 → π/2≈1.570796. Keep records independent.
Internal inverse fixture v=π m/s with r=0.5 m → 60 RPM; math constant supplied to test, not accepted literal pi input. Typed rounded v=3.141593 m/s with r=0.5 m gives approximately 60.000007 RPM, not exact 60. Do not compare or chain rounded display values as though unrounded. Format at most six decimals with approximation context; tiny positives are not exact zero.
Manual fields accept digits with optional dot and up to six fractional digits, finite magnitude ≤1000000. Size must be positive in both modes; RPM and speed may be zero. Reject blank, negative, nonfinite, commas, exponents or unknown units. Positive r with RPM=0 gives zero speed; inverse v=0 gives RPM=0. Size=0 is invalid. Preserve raw inputs, mode, size kind/unit, normalized r, formula, ω where derived, internal and displayed result.
Native mode/size-kind/unit selectors, labeled relevant fields, Calculate and Reset. Mode changes clear prior fields/results and change labels deliberately; no hidden duration or hardware inference. Any input edit invalidates old output. Reset empties fields/selections/feedback/result to choose-mode state. No wind ratio, Mach, cutting rating, displacement or horsepower calculation.
Test radius/diameter/mm equivalence, both forward sensitivity fixtures, exact internal inverse versus rounded typed inverse, zero rate/speed versus zero size, invalid grammar/range, mode changes, stale results and Reset. Check keyboard, actual article width and 360 px without page overflow. Separate performed arithmetic from proposed runtime tests; no built calculator, hosted-script or accessibility claim before verification. Native file/worksheet remains authoritative; optional NOS explanation promises no export, saved records or automatic source updates.
Keep the normalization worksheet with the answer
Retain the native file and the original radius/diameter worksheet together. The three equivalent size records are especially useful beside a result because they reveal a missing unit conversion or diameter halving before someone trusts the displayed speed.
NOS supports HTML saving and rendering. A prepared HTML explanation can display those normalization records and the static geometry beside the maintained source. Verify actual hosted mode changes, Calculate and Reset before presenting the helper as a working product example.
Explore NOS with the geometry review. The reader should be able to trace the answer from the stated size to radius, then from RPM to radians per second and rim speed.
