A bar to psi calculator should keep the reference label beside the numeric result. Units describe how the quantity is expressed; gauge or absolute identifies its reference basis. Losing that label can change the meaning even when the arithmetic is correct.
The worked values here are classroom inputs, not measured instrument readings or equipment settings. Actual atmospheric pressure, measurement uncertainty, calibration, and operational use are unknown.
Show the route through pascals
NIST's conversion table lists 1 bar = 100000 Pa = 100 kPa and lists psi as 6894.757 Pa per psi at the table's stated precision. NIST, SI Appendix B.9 Conversion Factors.
Use that provenance beside the formula:
psi ≈ bar × 100000 / 6894.757.

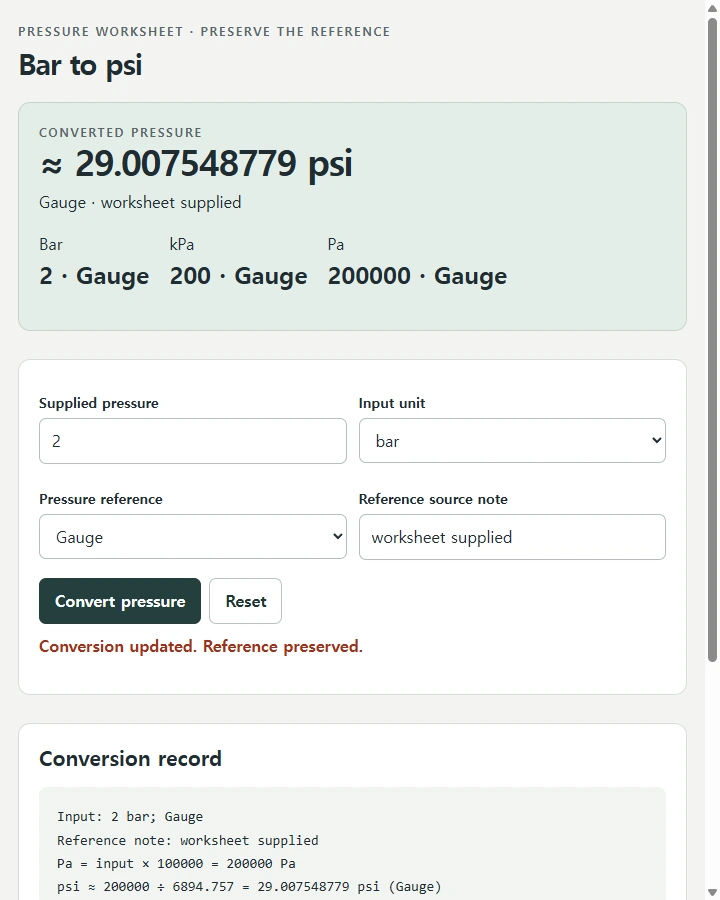

For the supplied quantity:
| Step | Numeric derivation | Reference carried through |
|---|---|---|
| Input | 2 bar | Gauge, supplied by worksheet |
| Convert to Pa | 2 × 100000 = 200000 Pa | Gauge |
| Express as kPa | 200000 / 1000 = 200 kPa | Gauge |
| Express as psi | 200000 / 6894.757 ≈ 29.007548779 psi | Gauge |
Keep the intermediate Pa value. It makes the unit factor and direction of conversion easier to audit than a result produced by an unexplained multiplier.
An additional worked check, 100 kPa, becomes 100000 Pa and approximately 14.503774390 psi, with the same reference label supplied for that check. It does not acquire a new pressure reference during conversion.
Carry the reference rather than adding an offset
Gauge pressure is referenced to atmospheric pressure; absolute pressure is referenced to a vacuum. DwyerOmega explains that distinction in its pressure-reference resource. DwyerOmega, What Is Pressure and How Is It Referenced?.
This example performs a unit conversion only. If the source says gauge, the result stays gauge. If the source says absolute, the result stays absolute. If the source does not specify a reference, the result must say reference unknown.
Do not assume gauge because a field says “bar,” or absolute because a converted field says “psi.” The worksheet's units alone do not establish either basis.
In particular, do not add a default 14.696 psi offset to the converted gauge number. No actual atmospheric reference was supplied, and changing pressure basis is outside this tool's operation. A field or button labeled “convert to psi” should not quietly perform that different calculation.
Retain a reference-note field so the reader can record where the label came from. “Gauge — worksheet supplied” is useful evidence for this exercise; it is not an instrument identification or calibration record.
Keep long displays separate from precision claims
The psi factor 6894.757 is tabulated to finite precision. Dividing by it may produce many display digits, but those digits do not make the underlying conversion factor or a real measurement equally precise.
This example shows nine digits after the decimal point to make the worked arithmetic reproducible with that factor. Label psi outputs approximate and retain the factor used. A more compact display may be appropriate for a particular worksheet, but its precision policy should be explicit.
Do not round an intermediate psi result and then use it as the basis of another conversion. Derive the displayed units from the same Pa value and keep the source input available for checking.
The unit worksheet does not establish a pressure limit, safe range, calibration result, or a recommended setting for a vehicle, medical device, or industrial system. Those decisions are outside its supplied task.
Validate educational magnitudes without pretending to validate a system
The example accepts finite nonnegative numeric magnitudes for this bounded educational exercise. Blank is missing input, not zero. An explicitly entered zero can be converted while retaining its supplied reference label; zero gauge and zero absolute are not interchangeable labels.
Negative entries are excluded by the tool's chosen scope. That rejection is not a universal claim that every negative pressure representation is meaningless. The tool is not deciding physical validity or interpreting a real system.
Require an input unit and a deliberate reference selection: Gauge, Absolute, or Unknown. If the label is unavailable, choose Unknown and keep it visible. Reject malformed or nonfinite numeric input with a specific error, and clear any previous result on a number, unit, or reference change.
After a valid 2-bar example, deleting the input must remove the old 29.007548779 psi display. Leaving it beside a blank field would hide the missing quantity.
Copy this prompt for the complete educational converter
Create an original self-contained offline HTML educational pressure
unit converter in US English, with all necessary local code in one
file. No instruments, network calls, storage, actual measurements,
calibration, equipment settings or operational recommendations.
Inputs: finite nonnegative numeric quantity, unit bar/kPa/Pa,
and deliberate reference selection Gauge/Absolute/Unknown plus
source-reference note. Use US dot-decimal notation; reject blank,
negative, malformed and nonfinite input. Zero is valid if entered.
Nonnegative scope is a tool choice, not a physical-validity claim.
Normalize through Pa: bar*100000, kPa*1000, Pa unchanged.
Display bar, kPa, Pa and psi. Use NIST tabulated 6894.757 Pa/psi
for psi=Pa/6894.757. Identify source URL and finite factor precision:
https://www.nist.gov/pml/special-publication-811/nist-guide-si-appendix-b-conversion-factors/nist-guide-si-appendix-b9
Show nine-place psi display with nearest rounding, halves up,
label approximate and retain source input/intermediate derivation.
Do not imply displayed digits verify measurement precision.
Preserve the supplied reference unchanged in every output.
Unknown stays Unknown. Bar/psi alone do not establish gauge or
absolute. No gauge-to-absolute conversion; do not add 14.696 or
any atmospheric default. Zero gauge not relabeled zero absolute.
Original checks:
2 bar Gauge -> 200000 Pa Gauge -> 200 kPa Gauge
-> approximately 29.007548779 psi Gauge, not absolute.
100 kPa with supplied reference -> 100000 Pa
-> approximately 14.503774390 psi with the same reference.
2 bar reference Unknown stays Unknown.
Blank input -> error, not zero and no old result.
Show units, reference note, factor provenance, derivation, rounding
label and plain-text worked record together. Clear stale output on
any input/unit/reference change. Use accessible errors, keyboard
controls, visible focus and readable narrow layout. Detect overflow
instead of displaying a nonfinite result. No saved edits or updates.
Return the complete file and manual unit/reference/error checks;
do not claim implementation tests or actual measurements occurred.
Read the generated converter's reference labels before checking its numeric output. A correct unit result still needs to say whether the source basis was gauge, absolute, or unknown.
