There is no clean way to convert HTML to SVG, and the reason is structural. HTML describes a layout that a browser resolves at render time, and SVG describes shapes and text at fixed coordinates.
Anything that converts between them has to run a layout engine first, then translate the result into shapes. Three approaches exist, and each one has a limit you should know before you start.
Three ways to convert HTML to SVG
| Route | Output | Main limit |
|---|---|---|
| foreignObject wrapper | HTML inside an SVG shell | Only renders in browsers |
| Layout engine converter | Real SVG shapes and text | Supports a subset of CSS |
| Extract existing SVG | The chart or icon alone | Only works if SVG is already there |
Read down the limit column first. It decides the route more often than the output column does.
Route 1: wrap the HTML in foreignObject
SVG can carry markup from another namespace inside a <foreignObject> element. The result is a valid .svg file that contains your HTML.
<svg xmlns="http://www.w3.org/2000/svg" width="600" height="320">
<foreignObject width="100%" height="100%">
<div xmlns="http://www.w3.org/1999/xhtml"
style="font:16px system-ui;padding:24px">
<h1>Weekly summary</h1>
<p>Signups are up on last week.</p>
</div>
</foreignObject>
</svg>
Two rules make it work. The inner element needs the XHTML namespace declared on it, and the markup must be well formed XML, so every tag closes and every attribute is quoted.
The styling has to be inline or inside a <style> element within the SVG. An external stylesheet will not travel with the file.

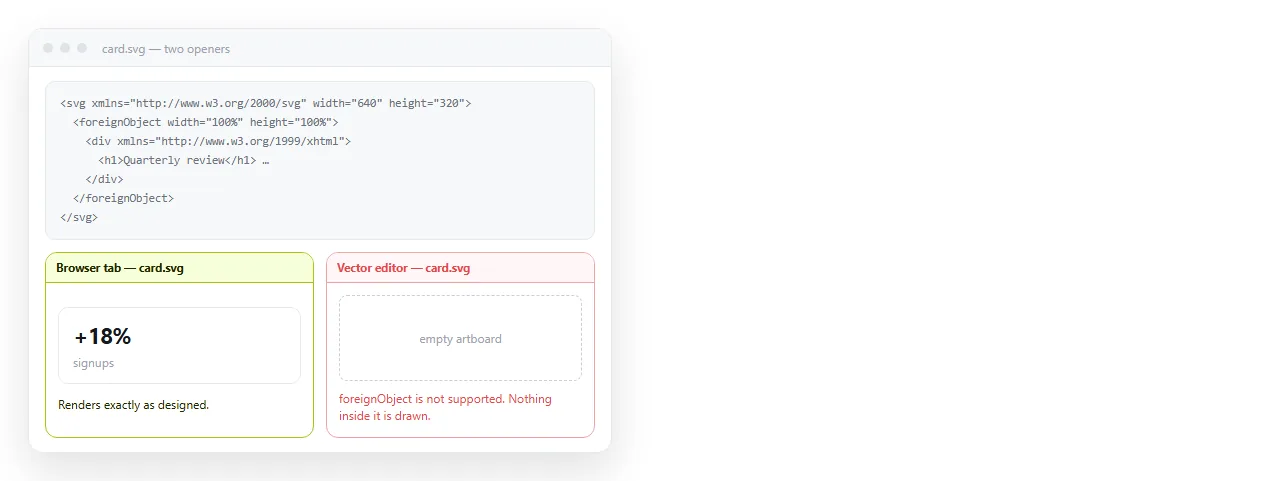

The limit. Browsers render foreignObject. Many other SVG consumers do not, including common command line rasterisers and several design tools. You get a blank rectangle there.
That makes this route right for an SVG that will be viewed in a browser, and wrong for one that goes into a design file or a print workflow.
Route 2: a converter with a layout engine

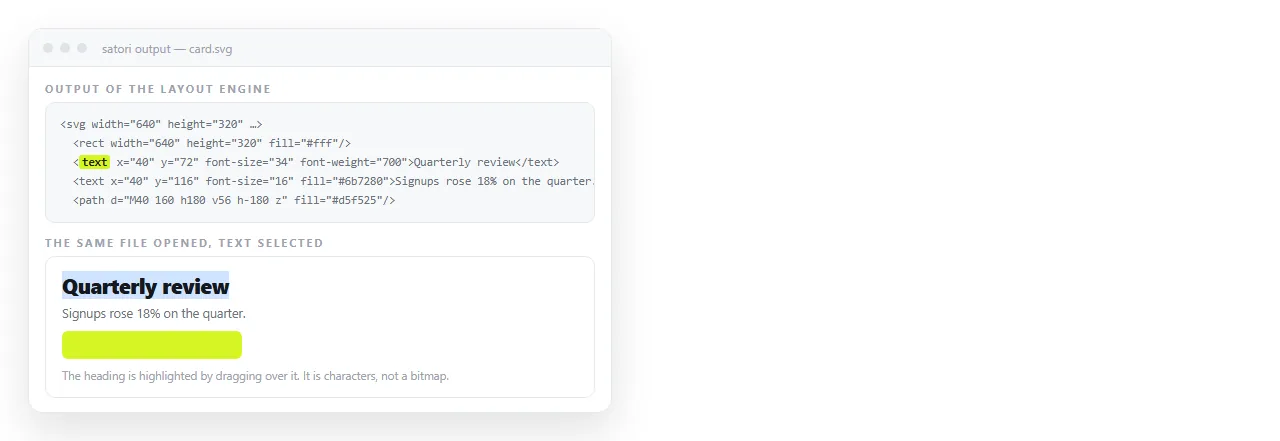

Some libraries implement a subset of CSS layout themselves and emit real SVG: <text>, <rect>, <path>. Satori is the common one, used to generate social preview images.
Because the output is genuine SVG, it renders anywhere, including in the tools that ignore foreignObject. The text stays selectable.
The limit. These converters support a subset of CSS. Flexbox is usually supported, floats and grid often are not, and unusual properties are ignored silently.
Treat that as a constraint on how you write the source. A page authored with flexbox, absolute sizes and an embedded font converts well. A page that relies on the full cascade does not.
Route 3: take the SVG that is already there
Often the thing you want as SVG is already SVG. Charting libraries render to SVG, and so do icon sets.
- Open the page and inspect the chart or icon.
- Find the enclosing
<svg>element in the Elements panel. - Right click and copy the outer HTML.
- Paste into a file, add
xmlns="http://www.w3.org/2000/svg"if the attribute is missing, and save with an.svgextension.
Check for two things afterwards. Whether the styling came from a stylesheet outside the SVG, in which case you inline it. And whether the chart uses a web font, in which case the text falls back unless you embed it.
SVG in HTML covers the reverse direction and the namespace rules in more detail.
When SVG is the right answer
- The image must scale. A logo or diagram on a poster and on a favicon, from one file.
- The text should stay text. Selectable, searchable, and readable by a screen reader.
- The content is lines and flat colour. Diagrams compress far better as shapes than as pixels.
- A designer will open it. Vector paths can be edited; a PNG cannot.
When it is not
If the page is a dense dashboard of mixed content, an SVG version is large, fragile and no better looking than a PNG at double density.
Capture it as PNG instead, or use the HTML to image tool and take the image from there.
The same applies when someone wants the page in a design tool. Going through SVG loses structure. Converting HTML to Figma covers the routes that keep layers intact.
Checking the file before you rely on it

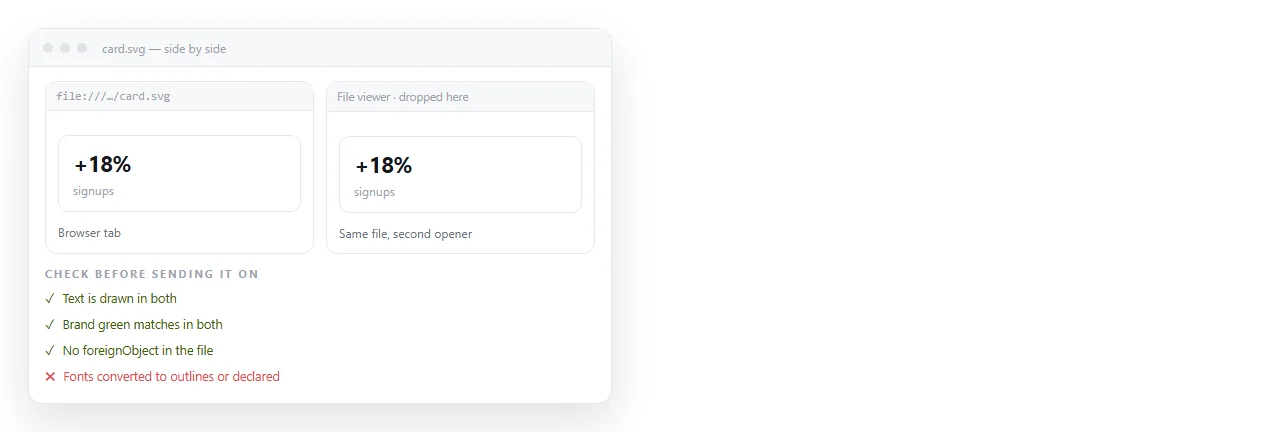

An SVG that looks right in one viewer can be empty in another. Test in more than one place.
Open it in a browser tab, which is the most permissive renderer. Then open it in whatever tool it is actually going to, which is the one that matters.
If the second one is blank, the content is inside a foreignObject and you need route two or a raster format.
When the goal was sharing, not the format
People often reach for SVG because a PNG looked soft when someone zoomed in, and the real requirement is that the page stays readable at any size.
A page at an address does that natively. It reflows for the screen it is on, the text stays selectable, and nothing is cut off at the edge of a capture.
Paste the HTML into a NOS document and it renders as written, with its own link. Turning HTML into a link is that step, and it takes one paste rather than a conversion pipeline.
