WebGL in HTML, from a blank canvas to a textured shape

WebGL needs no library and no install: a canvas element, two small shader programs and a few dozen lines of JavaScript draw straight on the graphics chip.

To use WebGL in an HTML page, put a <canvas> on it and ask for a webgl2 context. Compile a vertex shader and a fragment shader into a program, copy your shape into a buffer, and call drawArrays.

No library or build step is needed.

Here is the whole thing in one file: a triangle with a colour at each corner.

Live exampletry it here, then copy the code
Share it as a link
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>WebGL triangle</title>
<style>
  body { margin: 0; padding: 12px; font-family: system-ui, sans-serif; background: #f4f5f7; }
  canvas { display: block; width: 100%; height: 230px; border-radius: 10px; background: #111827; }
  .bar { display: flex; gap: 8px; align-items: center; margin-top: 10px; }
  button { font: inherit; font-size: 14px; padding: 7px 12px; border-radius: 8px; border: 1px solid #c9cdd4; background: #fff; cursor: pointer; }
  pre { margin: 8px 0 0; font-size: 12px; white-space: pre-wrap; color: #374151; }
</style>
</head>
<body>
<canvas id="c"></canvas>
<div class="bar"><button id="bad">Compile a broken shader</button></div>
<pre id="log"></pre>

<script>
  const canvas = document.getElementById('c');
  const log = document.getElementById('log');
  const gl = canvas.getContext('webgl2') || canvas.getContext('webgl');

  // Runs on the GPU once per corner (vertex)
  const vsSource = `
attribute vec2 a_pos;
attribute vec3 a_color;
varying vec3 v_color;
void main() {
  v_color = a_color;
  gl_Position = vec4(a_pos, 0.0, 1.0);
}`;

  // Runs once per pixel inside the triangle
  const fsSource = `
precision mediump float;
varying vec3 v_color;
void main() {
  gl_FragColor = vec4(v_color, 1.0);
}`;

  function compile(type, source) {
    const shader = gl.createShader(type);
    gl.shaderSource(shader, source);
    gl.compileShader(shader);  // never throws: you have to ask
    if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
      const msg = gl.getShaderInfoLog(shader);
      gl.deleteShader(shader);
      throw new Error(msg);
    }
    return shader;
  }

  function createProgram(vs, fs) {
    const program = gl.createProgram();
    gl.attachShader(program, compile(gl.VERTEX_SHADER, vs));
    gl.attachShader(program, compile(gl.FRAGMENT_SHADER, fs));
    gl.linkProgram(program);
    if (!gl.getProgramParameter(program, gl.LINK_STATUS)) {
      throw new Error(gl.getProgramInfoLog(program));
    }
    return program;
  }

  function draw() {
    // Match the drawing buffer to the size on screen
    canvas.width = Math.round(canvas.clientWidth * devicePixelRatio);
    canvas.height = Math.round(canvas.clientHeight * devicePixelRatio);
    gl.viewport(0, 0, canvas.width, canvas.height);

    const program = createProgram(vsSource, fsSource);
    gl.useProgram(program);

    // x, y, r, g, b for each corner. x and y run from -1 to 1.
    const data = new Float32Array([
       0.0,  0.8,   1.0, 0.3, 0.3,
      -0.8, -0.7,   0.3, 1.0, 0.4,
       0.8, -0.7,   0.3, 0.5, 1.0,
    ]);
    gl.bindBuffer(gl.ARRAY_BUFFER, gl.createBuffer());
    gl.bufferData(gl.ARRAY_BUFFER, data, gl.STATIC_DRAW);

    const stride = 5 * 4;  // 5 floats of 4 bytes per corner
    const pos = gl.getAttribLocation(program, 'a_pos');
    gl.enableVertexAttribArray(pos);
    gl.vertexAttribPointer(pos, 2, gl.FLOAT, false, stride, 0);
    const color = gl.getAttribLocation(program, 'a_color');
    gl.enableVertexAttribArray(color);
    gl.vertexAttribPointer(color, 3, gl.FLOAT, false, stride, 2 * 4);

    gl.clearColor(0.07, 0.09, 0.15, 1);
    gl.clear(gl.COLOR_BUFFER_BIT);
    gl.drawArrays(gl.TRIANGLES, 0, 3);
    log.textContent = 'Drawn with ' + gl.getParameter(gl.VERSION);
  }

  if (!gl) {
    log.textContent = 'This browser did not give a WebGL context.';
  } else {
    draw();
  }

  // gl_FragColor needs 4 numbers and v_color has 3, so this fails to compile
  document.getElementById('bad').addEventListener('click', () => {
    if (!gl) return;
    try {
      compile(gl.FRAGMENT_SHADER, fsSource.replace('vec4(v_color, 1.0)', 'v_color'));
    } catch (err) {
      log.textContent = 'Compile error:\n' + err.message;
    }
  });
</script>
</body>
</html>
One HTML file, no library. Press the button to see what a shader compile error looks like.

The rest of this guide takes that file apart, then adds animation and a texture.

WebGL or WebGL2

Both are built into the browser and both come from the same call. Ask for the newer one and fall back:

const gl = canvas.getContext('webgl2') || canvas.getContext('webgl');
if (!gl) { /* show a message instead */ }

A canvas keeps the first kind of context it hands out. Once it has given a webgl2 context, asking the same canvas for webgl or 2d returns null.

WebGL 1 WebGL 2
Ask for getContext('webgl') getContext('webgl2')
Shader language GLSL ES 1.00 GLSL ES 3.00, and 1.00 still works
Shader keywords attribute, varying in, out
Pixel colour output gl_FragColor Your own out vec4
Texture sizes like 300 x 200 Only with clamping and no mipmaps Work like any other size

The examples here use GLSL ES 1.00 shaders, so they run in either context.

To write WebGL 2 shaders, the first line of the source must be #version 300 es. Even a blank line before it is a compile error, which matters when the source sits in a template string that starts with a line break.

Two shaders make a program

A shader is a small program in GLSL, a C-like language, that runs on the graphics chip. WebGL needs two of them for every draw.

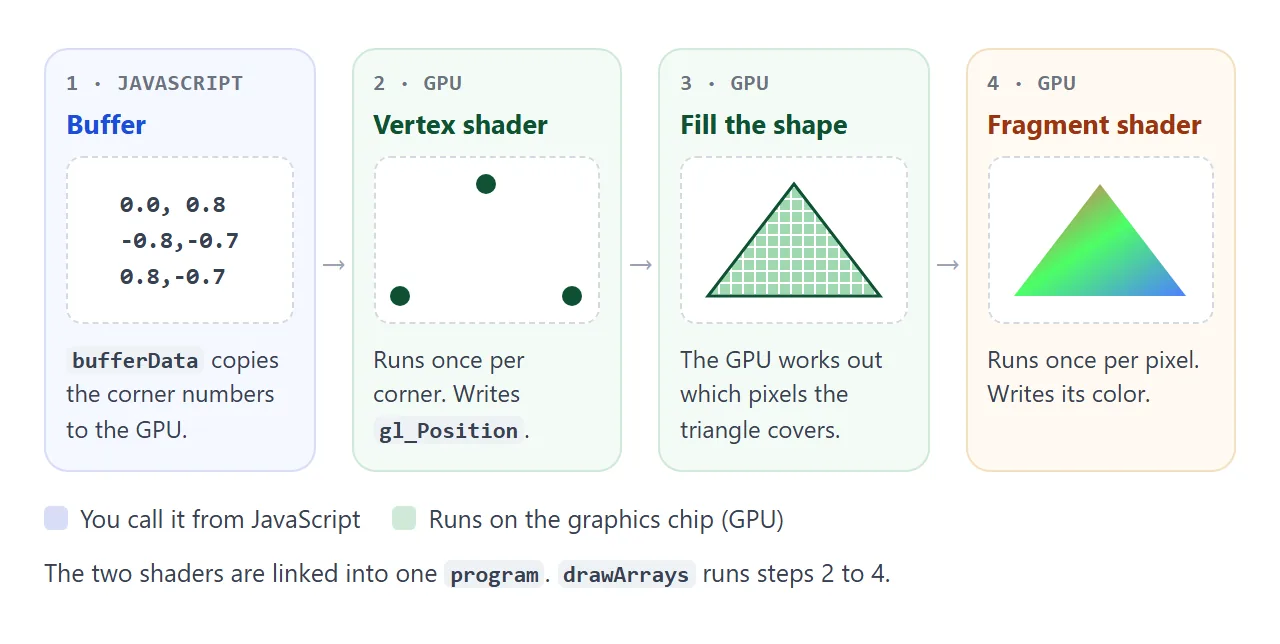

Your buffer goes through the vertex shader, then the fill step, then the fragment shader.
Your buffer goes through the vertex shader, then the fill step, then the fragment shader.
  • The vertex shader runs once for each corner and sets gl_Position, where that corner goes.
  • The fragment shader runs once for each pixel the shape covers and sets its colour.
// vertex shader
attribute vec2 a_pos;
attribute vec3 a_color;
varying vec3 v_color;
void main() {
  v_color = a_color;
  gl_Position = vec4(a_pos, 0.0, 1.0);
}

// fragment shader
precision mediump float;
varying vec3 v_color;
void main() {
  gl_FragColor = vec4(v_color, 1.0);
}

The precision mediump float; line is required in a GLSL ES 1.00 fragment shader. Without it, compiling fails with a "no precision specified" message.

Check every compile. compileShader never throws. A shader with a typo fails without a word in the console, and the only clue is a blank canvas. Ask for the status and read the log:

function compile(type, source) {
  const shader = gl.createShader(type);
  gl.shaderSource(shader, source);
  gl.compileShader(shader);
  if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
    throw new Error(gl.getShaderInfoLog(shader));
  }
  return shader;
}

Then attach both shaders to a program with attachShader, call linkProgram, and check LINK_STATUS the same way with getProgramInfoLog. The button in the first example compiles a shader that assigns 3 numbers where 4 are needed, and prints the log the browser returns.

Buffers: getting the triangle to the GPU

Shaders cannot read JavaScript arrays. The corner data goes into a buffer, and vertexAttribPointer tells WebGL how to read it:

const data = new Float32Array([
   0.0,  0.8,   1.0, 0.3, 0.3,   // x, y, r, g, b
  -0.8, -0.7,   0.3, 1.0, 0.4,
   0.8, -0.7,   0.3, 0.5, 1.0,
]);
gl.bindBuffer(gl.ARRAY_BUFFER, gl.createBuffer());
gl.bufferData(gl.ARRAY_BUFFER, data, gl.STATIC_DRAW);

const pos = gl.getAttribLocation(program, 'a_pos');
gl.enableVertexAttribArray(pos);
gl.vertexAttribPointer(pos, 2, gl.FLOAT, false, 20, 0);   // 2 floats, 20 bytes per corner
const color = gl.getAttribLocation(program, 'a_color');
gl.enableVertexAttribArray(color);
gl.vertexAttribPointer(color, 3, gl.FLOAT, false, 20, 8); // 3 floats, starting 8 bytes in

gl.drawArrays(gl.TRIANGLES, 0, 3);

Each corner is five 4-byte numbers, so the stride is 20 bytes and the colour starts 8 bytes in. Forget enableVertexAttribArray and every corner reads the same constant value, so nothing is drawn and no error is raised.

The positions are not pixels. WebGL uses clip space, where the canvas runs from -1 to 1 on both axes, with up as positive y.

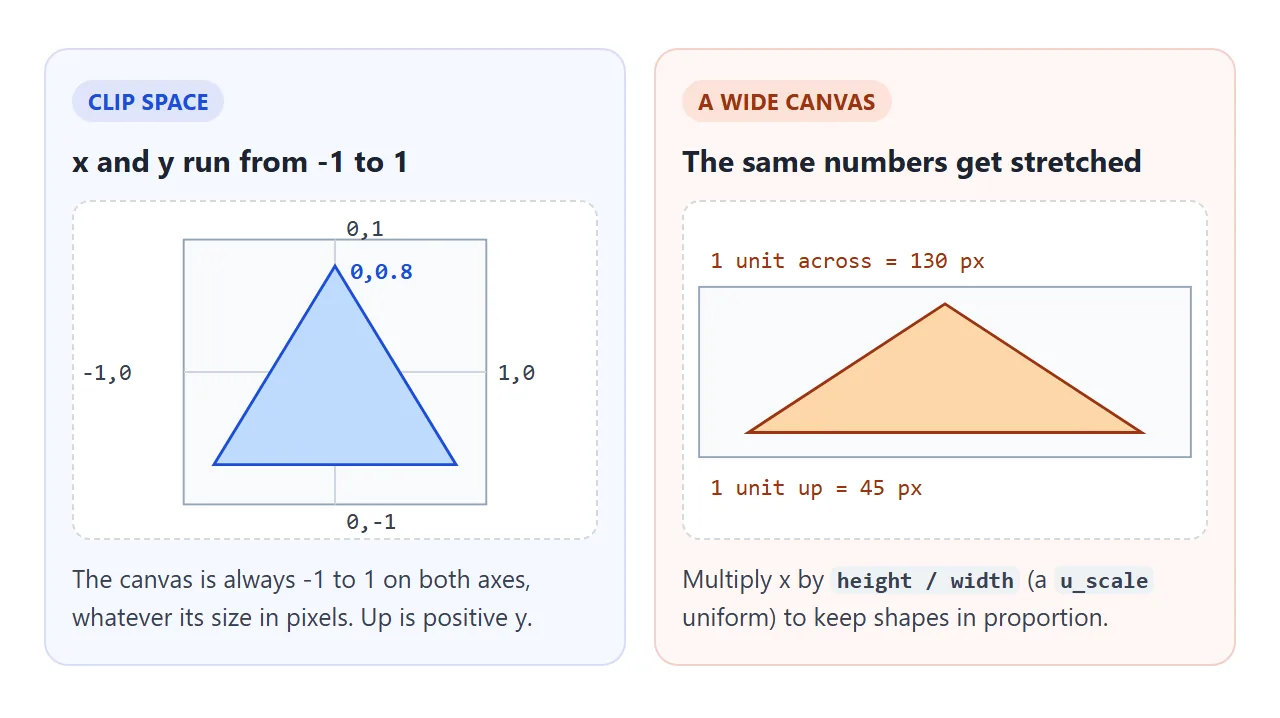

Clip space is -1 to 1 whatever the canvas size, so a wide canvas stretches shapes sideways.
Clip space is -1 to 1 whatever the canvas size, so a wide canvas stretches shapes sideways.

The canvas also has its own pixel count, separate from its size on screen. A canvas starts at 300 x 150.

Set canvas.width and canvas.height from clientWidth times devicePixelRatio, then call gl.viewport with the same numbers. HTML canvas blurry explains the size mismatch in more detail.

Animate it with uniforms

A uniform is a value that stays the same for every corner and pixel in one draw, set from JavaScript. Change it every frame and the shape moves.

Live exampletry it here, then copy the code
Share it as a link
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>WebGL uniforms</title>
<style>
  body { margin: 0; padding: 12px; font-family: system-ui, sans-serif; background: #f4f5f7; }
  canvas { display: block; width: 100%; height: 250px; border-radius: 10px; background: #111827; }
  .bar { display: flex; flex-wrap: wrap; gap: 14px; align-items: center; margin-top: 10px; font-size: 14px; }
  label { display: flex; gap: 6px; align-items: center; }
  input[type=range] { width: 120px; }
</style>
</head>
<body>
<canvas id="c"></canvas>
<div class="bar">
  <label>Color <input type="color" id="color" value="#f59e0b"></label>
  <label>Speed <input type="range" id="speed" min="0" max="4" step="0.1" value="1"></label>
</div>

<script>
  const canvas = document.getElementById('c');
  const gl = canvas.getContext('webgl2') || canvas.getContext('webgl');

  const vsSource = `
attribute vec2 a_pos;
uniform float u_angle;   // one value for every corner, set from JavaScript
uniform vec2 u_scale;    // undoes the stretch of a wide canvas
void main() {
  float c = cos(u_angle), s = sin(u_angle);
  vec2 p = vec2(a_pos.x * c - a_pos.y * s, a_pos.x * s + a_pos.y * c);
  gl_Position = vec4(p * u_scale, 0.0, 1.0);
}`;

  const fsSource = `
precision mediump float;
uniform vec3 u_color;
void main() {
  gl_FragColor = vec4(u_color, 1.0);
}`;

  function compile(type, source) {
    const shader = gl.createShader(type);
    gl.shaderSource(shader, source);
    gl.compileShader(shader);
    if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) throw new Error(gl.getShaderInfoLog(shader));
    return shader;
  }

  const program = gl.createProgram();
  gl.attachShader(program, compile(gl.VERTEX_SHADER, vsSource));
  gl.attachShader(program, compile(gl.FRAGMENT_SHADER, fsSource));
  gl.linkProgram(program);
  if (!gl.getProgramParameter(program, gl.LINK_STATUS)) throw new Error(gl.getProgramInfoLog(program));
  gl.useProgram(program);

  // One triangle around 0,0 so it spins in place
  gl.bindBuffer(gl.ARRAY_BUFFER, gl.createBuffer());
  gl.bufferData(gl.ARRAY_BUFFER, new Float32Array([0, 0.8, -0.7, -0.4, 0.7, -0.4]), gl.STATIC_DRAW);
  const pos = gl.getAttribLocation(program, 'a_pos');
  gl.enableVertexAttribArray(pos);
  gl.vertexAttribPointer(pos, 2, gl.FLOAT, false, 0, 0);

  // Look up each uniform once, set it every frame
  const uAngle = gl.getUniformLocation(program, 'u_angle');
  const uScale = gl.getUniformLocation(program, 'u_scale');
  const uColor = gl.getUniformLocation(program, 'u_color');

  const colorInput = document.getElementById('color');
  const speedInput = document.getElementById('speed');
  let angle = 0, last = performance.now();

  function frame(now) {
    const w = Math.round(canvas.clientWidth * devicePixelRatio);
    const h = Math.round(canvas.clientHeight * devicePixelRatio);
    if (canvas.width !== w || canvas.height !== h) {
      canvas.width = w; canvas.height = h;
      gl.viewport(0, 0, w, h);
    }
    angle += (now - last) / 1000 * speedInput.value;
    last = now;

    // "#rrggbb" to three numbers from 0 to 1
    const n = parseInt(colorInput.value.slice(1), 16);
    gl.uniform3f(uColor, (n >> 16) / 255, (n >> 8 & 255) / 255, (n & 255) / 255);
    gl.uniform1f(uAngle, angle);
    gl.uniform2f(uScale, h / w, 1);

    gl.clearColor(0.07, 0.09, 0.15, 1);
    gl.clear(gl.COLOR_BUFFER_BIT);
    gl.drawArrays(gl.TRIANGLES, 0, 3);
    requestAnimationFrame(frame);
  }
  requestAnimationFrame(frame);
</script>
</body>
</html>
The angle, the colour and an aspect fix are uniforms. The speed slider changes how fast the angle grows.
const uAngle = gl.getUniformLocation(program, 'u_angle'); // once

function frame(now) {
  gl.uniform1f(uAngle, now / 1000);   // every frame
  gl.clear(gl.COLOR_BUFFER_BIT);
  gl.drawArrays(gl.TRIANGLES, 0, 3);
  requestAnimationFrame(frame);
}
requestAnimationFrame(frame);

The loop uses requestAnimationFrame, covered in requestAnimationFrame in JavaScript. The function name after uniform matches the type: uniform1f for a float, uniform2f for a vec2, uniform3f for a vec3.

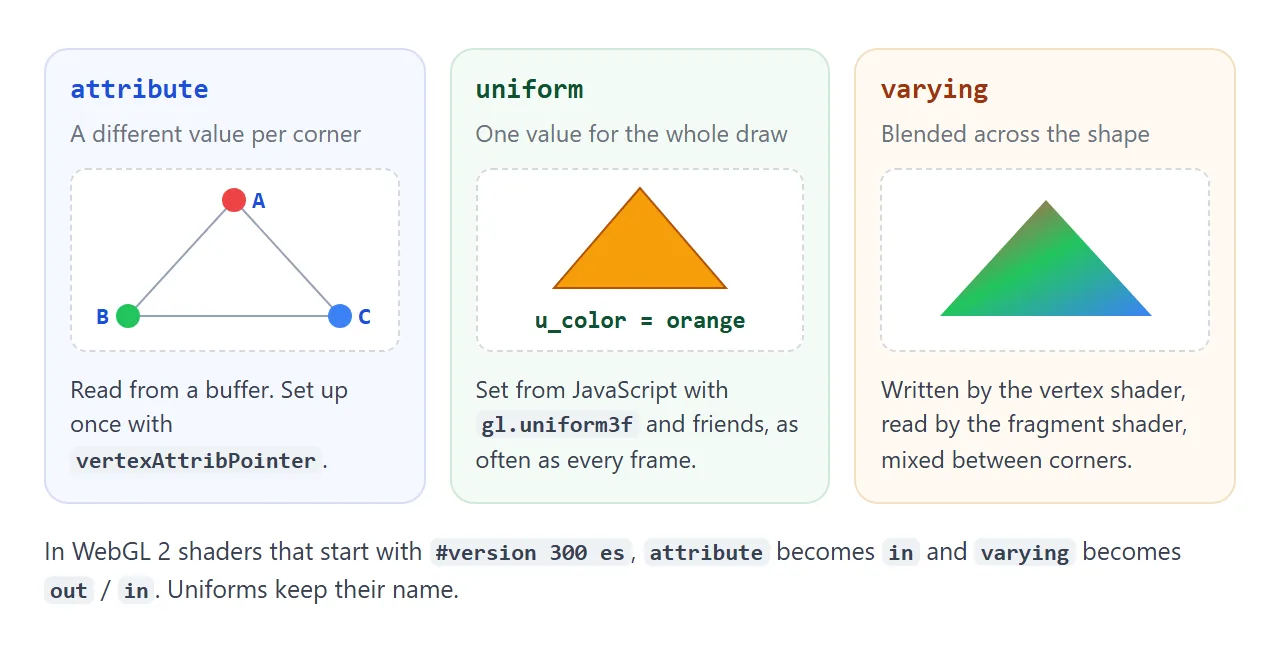

Three ways data reaches a shader: per corner, per draw, or blended between corners.
Three ways data reaches a shader: per corner, per draw, or blended between corners.

One trap: if a shader declares a uniform but never uses it, the compiler can remove it. getUniformLocation then returns null, and setting a null location does nothing without raising an error.

A texture from a generated canvas

A texture is an image the fragment shader can sample. The source does not have to be a file. A 2D canvas you draw with ordinary fillRect and fillText calls works, and needs no download.

Live exampletry it here, then copy the code
Share it as a link
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>WebGL texture from a canvas</title>
<style>
  body { margin: 0; padding: 12px; font-family: system-ui, sans-serif; background: #f4f5f7; }
  canvas { display: block; width: 100%; height: 270px; border-radius: 10px; background: #111827; }
  .bar { display: flex; gap: 10px; align-items: center; margin-top: 10px; font-size: 14px; }
  button { font: inherit; padding: 7px 12px; border-radius: 8px; border: 1px solid #c9cdd4; background: #fff; cursor: pointer; }
  #log { color: #9a3412; font-size: 12px; }
</style>
</head>
<body>
<canvas id="c"></canvas>
<div class="bar"><button id="repaint">Paint a new texture</button><span id="log"></span></div>

<script>
  const canvas = document.getElementById('c');
  const log = document.getElementById('log');
  const gl = canvas.getContext('webgl2') || canvas.getContext('webgl');

  const vsSource = `
attribute vec2 a_pos;
attribute vec2 a_uv;
uniform float u_time;
uniform vec2 u_scale;
varying vec2 v_uv;
void main() {
  v_uv = a_uv;
  float turn = cos(u_time * 0.8);             // swings between -1 and 1
  vec2 p = vec2(a_pos.x * (0.6 + 0.4 * turn), a_pos.y) * 0.8;
  gl_Position = vec4(p * u_scale, 0.0, 1.0);
}`;

  const fsSource = `
precision mediump float;
uniform sampler2D u_tex;
varying vec2 v_uv;
void main() {
  gl_FragColor = texture2D(u_tex, v_uv);
}`;

  function compile(type, source) {
    const shader = gl.createShader(type);
    gl.shaderSource(shader, source);
    gl.compileShader(shader);
    if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) throw new Error(gl.getShaderInfoLog(shader));
    return shader;
  }

  function createProgram() {
    const program = gl.createProgram();
    gl.attachShader(program, compile(gl.VERTEX_SHADER, vsSource));
    gl.attachShader(program, compile(gl.FRAGMENT_SHADER, fsSource));
    gl.linkProgram(program);
    if (!gl.getProgramParameter(program, gl.LINK_STATUS)) throw new Error(gl.getProgramInfoLog(program));
    return program;
  }

  // Draw the picture with the ordinary 2D canvas API. No image file needed.
  const art = document.createElement('canvas');
  art.width = art.height = 256;  // a power of two also works in WebGL 1
  function paint(hue) {
    const ctx = art.getContext('2d');
    for (let y = 0; y < 8; y++) for (let x = 0; x < 8; x++) {
      ctx.fillStyle = `hsl(${hue + (x + y) * 8}, 70%, ${(x + y) % 2 ? 55 : 35}%)`;
      ctx.fillRect(x * 32, y * 32, 32, 32);
    }
    ctx.fillStyle = '#fff';
    ctx.textAlign = 'center';
    ctx.font = 'bold 30px system-ui, sans-serif';
    ctx.fillText('TOP', 128, 44);
    ctx.font = 'bold 56px system-ui, sans-serif';
    ctx.fillText('WebGL', 128, 148);
  }

  function upload(texture) {
    gl.bindTexture(gl.TEXTURE_2D, texture);
    gl.pixelStorei(gl.UNPACK_FLIP_Y_WEBGL, true);  // canvas rows run top-down, texture v runs bottom-up
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA, gl.UNSIGNED_BYTE, art);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);  // no mipmaps needed
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);
  }

  function start() {
    const program = createProgram();
    gl.useProgram(program);

    // A square as a strip of two triangles: x, y, u, v per corner
    gl.bindBuffer(gl.ARRAY_BUFFER, gl.createBuffer());
    gl.bufferData(gl.ARRAY_BUFFER, new Float32Array([
      -1, -1, 0, 0,   1, -1, 1, 0,   -1, 1, 0, 1,   1, 1, 1, 1,
    ]), gl.STATIC_DRAW);
    const pos = gl.getAttribLocation(program, 'a_pos');
    const uv = gl.getAttribLocation(program, 'a_uv');
    gl.enableVertexAttribArray(pos);
    gl.vertexAttribPointer(pos, 2, gl.FLOAT, false, 16, 0);
    gl.enableVertexAttribArray(uv);
    gl.vertexAttribPointer(uv, 2, gl.FLOAT, false, 16, 8);

    const texture = gl.createTexture();
    paint(200);
    upload(texture);
    document.getElementById('repaint').addEventListener('click', () => {
      paint(Math.floor(Math.random() * 360));
      upload(texture);  // same texture object, new pixels
    });

    const uTime = gl.getUniformLocation(program, 'u_time');
    const uScale = gl.getUniformLocation(program, 'u_scale');

    function frame(now) {
      const w = Math.round(canvas.clientWidth * devicePixelRatio);
      const h = Math.round(canvas.clientHeight * devicePixelRatio);
      if (canvas.width !== w || canvas.height !== h) {
        canvas.width = w; canvas.height = h;
        gl.viewport(0, 0, w, h);
      }
      gl.uniform1f(uTime, now / 1000);
      gl.uniform2f(uScale, Math.min(h / w, 1), Math.min(w / h, 1));  // keep the square square
      gl.clearColor(0.07, 0.09, 0.15, 1);
      gl.clear(gl.COLOR_BUFFER_BIT);
      gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
      requestAnimationFrame(frame);
    }
    requestAnimationFrame(frame);
  }

  if (!gl) {
    log.textContent = 'This browser did not give a WebGL context.';
  } else {
    try { start(); } catch (err) { log.textContent = err.message; }
  }
</script>
</body>
</html>
The picture is drawn on a hidden 256 x 256 canvas, then uploaded. The button repaints it and uploads again.
const art = document.createElement('canvas');
art.width = art.height = 256;
// ...draw on art.getContext('2d')...

gl.bindTexture(gl.TEXTURE_2D, gl.createTexture());
gl.pixelStorei(gl.UNPACK_FLIP_Y_WEBGL, true);
gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA, gl.UNSIGNED_BYTE, art);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);

Three details matter here:

  1. Flip. A canvas stores its rows top to bottom, and texture coordinates count up from the bottom. Without UNPACK_FLIP_Y_WEBGL, the picture shows upside down.

  2. Filter. By default, a texture expects smaller copies of itself called mipmaps. With none, it samples as black. Set the minifying filter to LINEAR, or call gl.generateMipmap.

  3. Size. In WebGL 1, a texture whose sides are not powers of two (256, 512, and so on) also needs CLAMP_TO_EDGE on both axes. WebGL 2 does not have this limit.

In the shader, texture2D(u_tex, v_uv) reads a colour at a coordinate from 0 to 1. In a #version 300 es shader the same function is called texture.

When it does not work

What you see Cause Fix
Blank canvas, no console error A shader failed to compile or link Check COMPILE_STATUS and LINK_STATUS, print the log
"No precision specified for (float)" GLSL ES 1.00 fragment shader without a precision line Add precision mediump float;
"#version directive must occur on the first line" A line break before #version 300 es Start the template string with #version
getContext('webgl') returns null The canvas already has a different context Use one context type per canvas
Shape drawn nowhere, no error enableVertexAttribArray missing Enable each attribute you use
INVALID_OPERATION from drawArrays No program in use Call gl.useProgram(program) first
Shape stretched or blurry Drawing buffer does not match the element size Set width and height from the element size, then gl.viewport
Texture is black Default filter expects mipmaps Set TEXTURE_MIN_FILTER to LINEAR
Texture is upside down Canvas rows run top to bottom Set UNPACK_FLIP_Y_WEBGL to true before upload
SecurityError in texImage2D Image from another origin without CORS Use a same-origin image, CORS headers, or a generated canvas
Uniform has no effect Unused uniform removed, location is null Use it in the shader, check the location

A WebGL page is hard to show in a screenshot. The animation stops, and the viewer cannot change the colour or repaint the texture. An .html attachment may open as plain code on a phone.

To send the working version, paste the page into a NOS document and choose Create share link. HTML to link walks through it.

The page renders as written and its scripts run, so the people you send it to see the shape move and can press the buttons themselves. If you change the code later, the same link shows the new version.

Questions people ask

Do I need three.js or another library to use WebGL?

No. WebGL is built into the browser and is reached through canvas.getContext('webgl2') or getContext('webgl'). Libraries add scene graphs, model loaders and cameras on top. For a triangle, a textured square or a shader effect, the plain API is enough.

Should I ask for webgl or webgl2?

Ask for webgl2 first and fall back to webgl. Shaders written in GLSL ES 1.00, the WebGL 1 language, also compile in a WebGL 2 context, so one set of shaders can serve both. Use #version 300 es only when you need WebGL 2 features.

Why is my WebGL canvas blank with no error in the console?

Shader compile errors do not throw and do not print on their own. Check COMPILE_STATUS after compileShader and LINK_STATUS after linkProgram, and print getShaderInfoLog or getProgramInfoLog when they are false. Other silent causes are a missing enableVertexAttribArray and a texture with no mipmaps.

Can I load an image file as a WebGL texture?

Yes, from the same origin or from a server that sends CORS headers. An image from another origin without permission makes texImage2D throw a SecurityError. Drawing the picture on a 2D canvas and uploading that canvas avoids the problem, which is what the texture example here does.

Does WebGL work on phones?

The examples on this page use only the basic API and are tested at phone width. Set the drawing buffer size from the element size times devicePixelRatio, or the result will look soft on high-density screens.

Keep reading

3D in the browser with plain CSS, from a cube to a product viewerBuild 3D in the browser with plain CSS: a cube from six divs, drag to rotate, a product box Make a particle effect in HTML with canvas and JavaScriptBuild a particle effect in plain HTML and JavaScript: a fountain, a network background that requestAnimationFrame in JavaScript: build a smooth animation loopHow requestAnimationFrame works: the timestamp, speed that does not depend on frame rate, caHTML canvas blurryA canvas looks soft because its buffer is smaller than its box on screen. Set the width and HTML canvas drawHow to draw on an HTML canvas with getContext 2d, the attribute size versus CSS size trap, aSingle HTML file gamesWhy single HTML file games run anywhere, which parts of a game cannot fit in one file, and hHTML to linkTurn HTML into a link in 5 steps: check the page, paste it into a NOS document, copy the sha
