A row of thumbnails is only the start of a gallery. A reader also needs to know what each image shows, open it without losing their place, and see the same pictures after you send the page.
The example here puts those parts together. It is a small selection of public-domain paintings from The Met, with the image files embedded in the HTML. You can open the downloaded file without depending on a separate pictures folder.
Open a complete gallery first
Try an image, move to the next work, and close the enlarged view. At phone width the layout changes without shrinking the captions into tiny text.
Download the complete HTML. The sample images are included. Replace them with images you have permission to use; preserve the credit information you need for your own collection.
For an exhibition proposal, put the works in viewing order. For a photographer’s shortlist, put the strongest relevant pictures first. The layout is a starting point; the selection should reflect what you want the reader to look at.

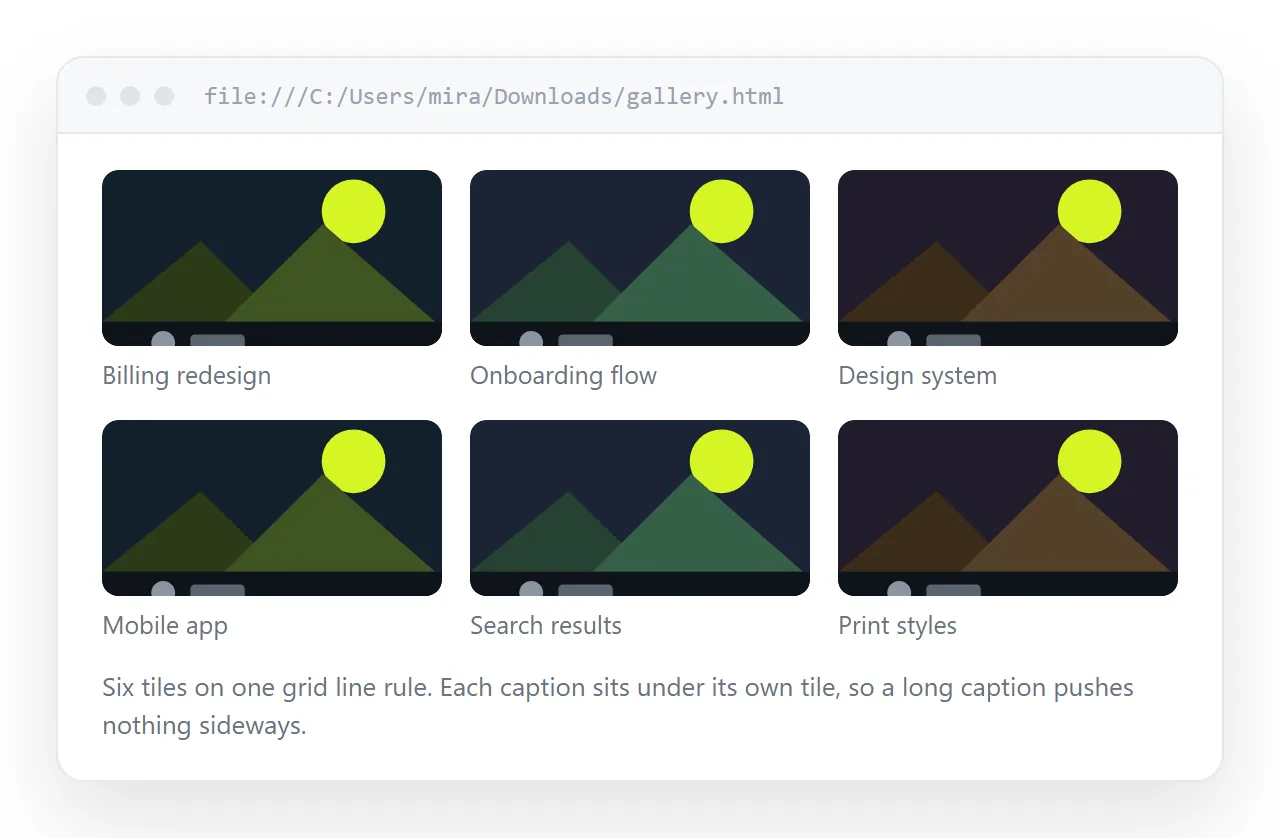

The grid should fit its container
The core layout is CSS Grid. This version allows the minimum column width to shrink when the container is narrower than a normal tile:
.gallery {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(min(100%, 280px), 1fr));
gap: 24px;
}
.gallery figure { margin: 0; min-width: 0; }
.gallery img { display: block; width: 100%; height: auto; }
The columns respond to the available width. In the example, the artwork keeps its natural proportions rather than being cropped into matching squares. That is a deliberate choice for paintings: the whole composition matters.
For product tiles where a repeated shape helps comparison, use an aspect ratio and decide between cover and contain. Cover fills the box by cropping; contain keeps the whole image inside it. Do not crop a label, a face, or the edge of a work by accident.
Keep the picture, label, and description together
Use a figure for a work and a figcaption for the label people can read. The example’s label includes the artist, title, and date.
An image’s alt text serves a different purpose: it provides a text alternative. Describe the relevant visual content, or use an intentional empty value when the image is purely decorative. Alt text explains that decision in more detail.
When replacing a sample work, update the image, its alternative text, its visible label, and the enlarged view together. Otherwise a new photograph can open under the old painting’s title.
An enlarged view needs a way back
The example uses a native dialog, opened with showModal(). A visible close button remains available, Escape dismisses the modal, and closing it returns focus to the image button that opened it. Previous and next controls step through the works.
A few lines of CSS using :target can make a picture larger, but that alone does not implement the same keyboard and focus behavior. If your gallery needs an enlarged view, test those controls rather than stopping when the overlay looks right.
At phone width, make the image fit inside the screen and keep the close button reachable. In this example the navigation buttons are ordinary labeled buttons; swipe navigation is not included.

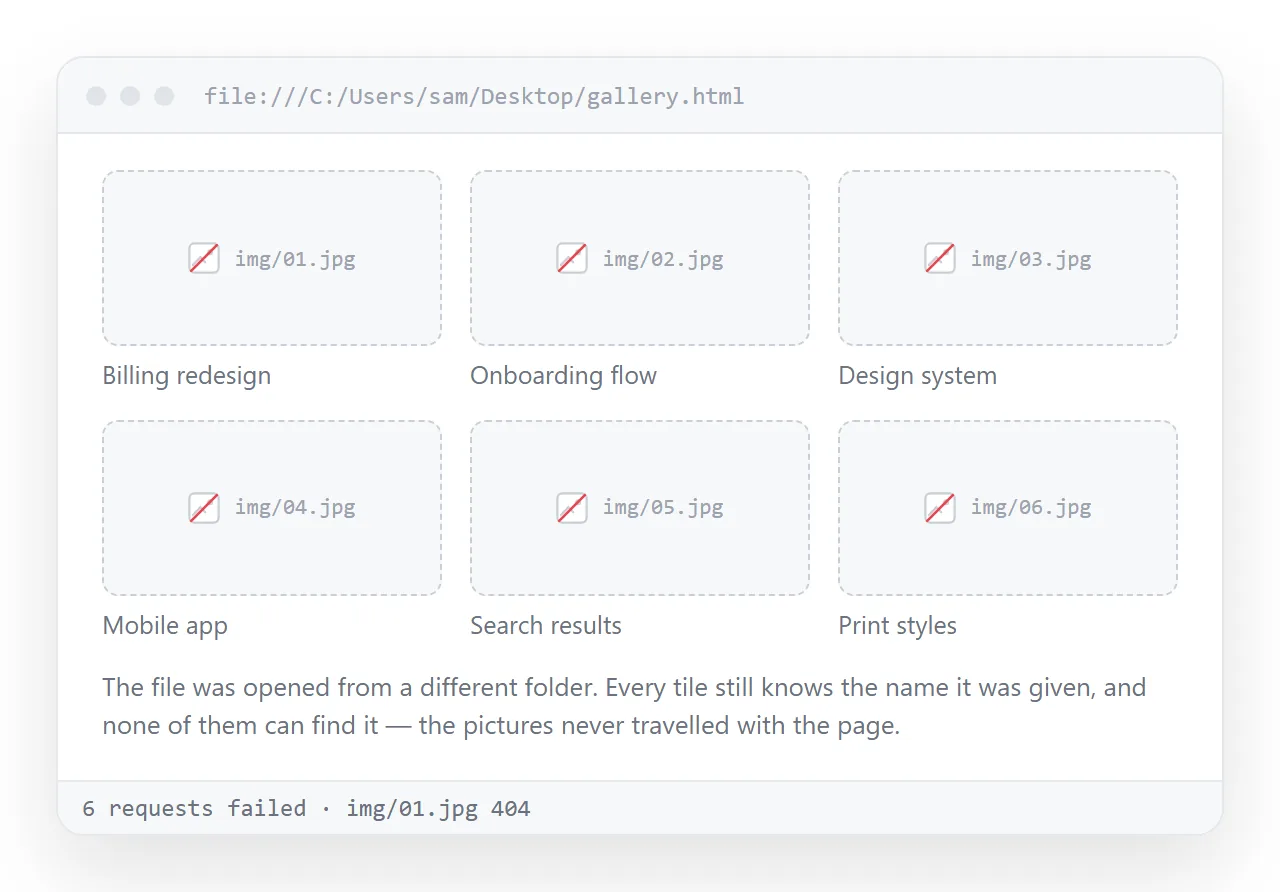

Make sure the images leave your folder
Choose the asset setup before you send the page:
| Setup | What needs to travel | What to check |
|---|---|---|
| An HTML file and image folder | The HTML and its folder structure | Every relative image path resolves after copying |
| A page and hosted images | The page and accessible image URLs | Image permissions and the viewer’s content rules |
| Images embedded in HTML | One larger HTML file | The finished file size and image quality |
The Met makes designated public-domain works available through Open Access. The sample’s source records are marked public domain; that permission does not automatically apply to images you add.
The download uses the last option. Its images are encoded as data URLs, so there is no request to the museum’s image server when you open the gallery. Self-contained HTML covers the same approach for other kinds of page.
Resize your source images before embedding them. Test the finished file on the device readers will use; counting photos is not a measurement of page weight. A few full-resolution originals can be heavier than a much larger set of resized pictures.
Send a gallery people can open and revisit
For a one-off handoff, the complete HTML file can be enough. Open that copy from a different folder before sending it. For a selection you expect to revise, a shared page lets readers return to the current version.
In NOS, paste the gallery HTML into a document and check every image and the enlarged view. Use embedded images or the product’s upload route; do not assume outside image URLs work in every publishing environment.

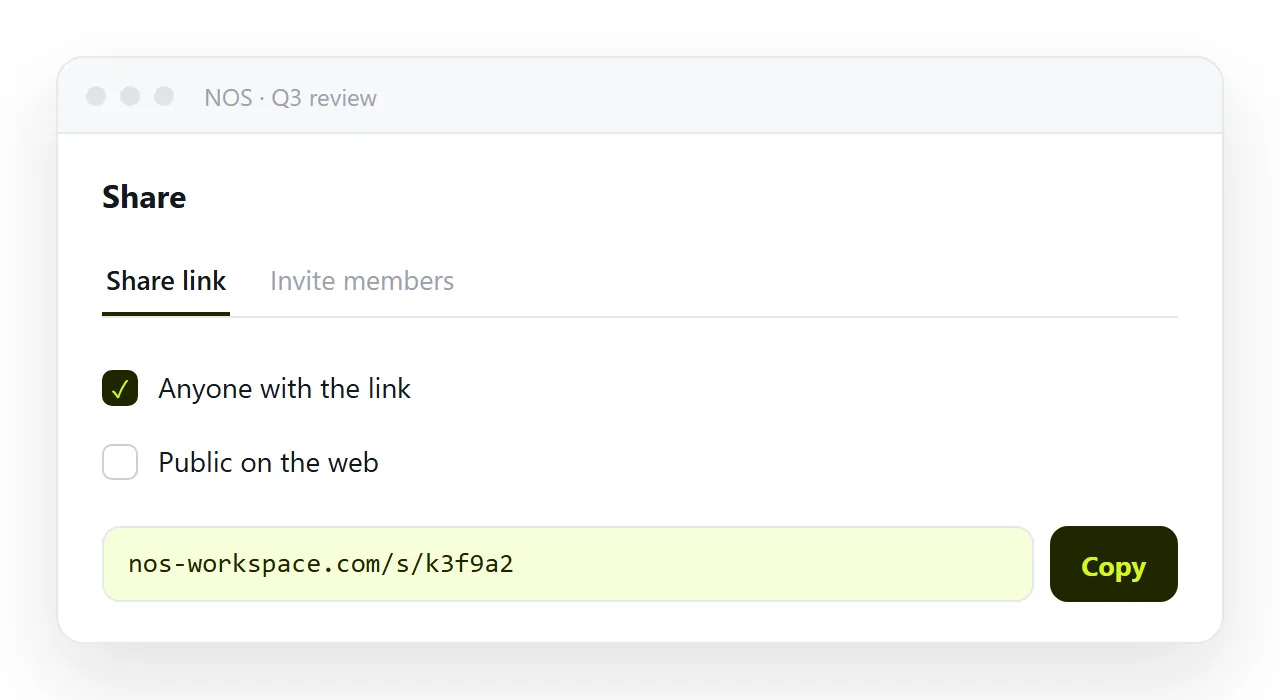

Open the gallery’s actual share link.
Create the share link and open it as a reader. If someone spots a title typo after you send it, correct the text in the saved page and reopen that same link to verify the change. Replace the image data in the HTML when the artwork itself changes.
Before sharing the finished selection, try it at phone width, tab through the image buttons, open and close the enlarged view, and check that the last image is as complete as the first.
